Operating Mode: continuous operation	Dimensions: 95mm φ30mm	Weight: 108g
Connection: 3.5mm jack	Drive: Precision motor-DC	Piercing Frequency: 40Hz-160Hz
Rated Voltage: 7.5V (new program)	Power Intake: 2w	Stroke: 3.5mm
Needle Protrusion: 0-4mm	Vibration Total Value: ≤2.5m2/s	Emission Sound Pressure Level: ≤65Db(A)

CNC Tattoo Machine: Precision and Performance

CNC Tattoo Machine is carved by aircraft aluminum alloy enclosure. The CNC pen rotary machine is much quieter and vibrates less than conventional tattoo devices. But it still has high puncturing power and frequency.

CNC hybrid tattoo pen is designed to give you the closest feeling to an actual pen. This machine features a powerful German Faulhaber motor and exquisite appearance, lightweight, and super stable.

LIGHT WEIGHT DESIGN

110 grams only, forward-weight, aiding the artist with downward needle pressure.

SHORT PEN DESIGN

95mm length. Free up your creative space to the fullest. Comfortable grip helps especially when long working hours are required.

FAULHABER DRIVE

High level of precision and power in the Faulhaber Micromotor makes CNC Q2 perform excellent at lining and color packing.

LOW VIBRATION

The drive structure is optimized by the professional CNC design team, combined with high-performance motors, thus significantly reducing vibration and noise.

CNC Q Family Tattoo Pen Comparison		CNC Q1	CNC Q2	CNC Q3	CNC Q5	CNC Q6
SPECIALIZATION
	Type	Direct Drive	Direct Drive	Direct Drive	Direct Drive	Direct Drive
	Stroke Size	3.5mm 3.0mm or 4.0mm adjustable	3.5mm 3.0mm or 4.0mm adjustable	3.5mm 3.0mm or 4.0mm adjustable	3.5mm 3.0mm or 4.0mm adjustable	3.5mm 3.0mm or 4.0mm adjustable
	Grip Size	31mm	30mm	32mm	34mm	34mm
	Connectivity	RCA cord or wireless battery	RCA cord or wireless battery	RCA cord or wireless battery	RCA cord or wireless battery	RCA cord or wireless battery
	Needle Depth	0 - 4.0mm	0 - 4.0mm	0 - 4.0mm	0 - 4.0mm	0 - 4.0mm
	Motor	Precision motor-DC	Faulhaber motor	CNC customized Germany motor	CNC customized Germany motor	Germany coreless motor
	Weight	110g	108g	123.6g	147g	153g
	Capabilities	All tattooing techniques	All tattooing techniques	All tattooing techniques	All tattooing techniques, especially suitable for shading.	All tattooing techniques
	Body Tattoo	✔️	✔️	✔️	✔️	✔️

Pen Machines

CNC P6 Tattoo Pen Machine Adjustable Stroke

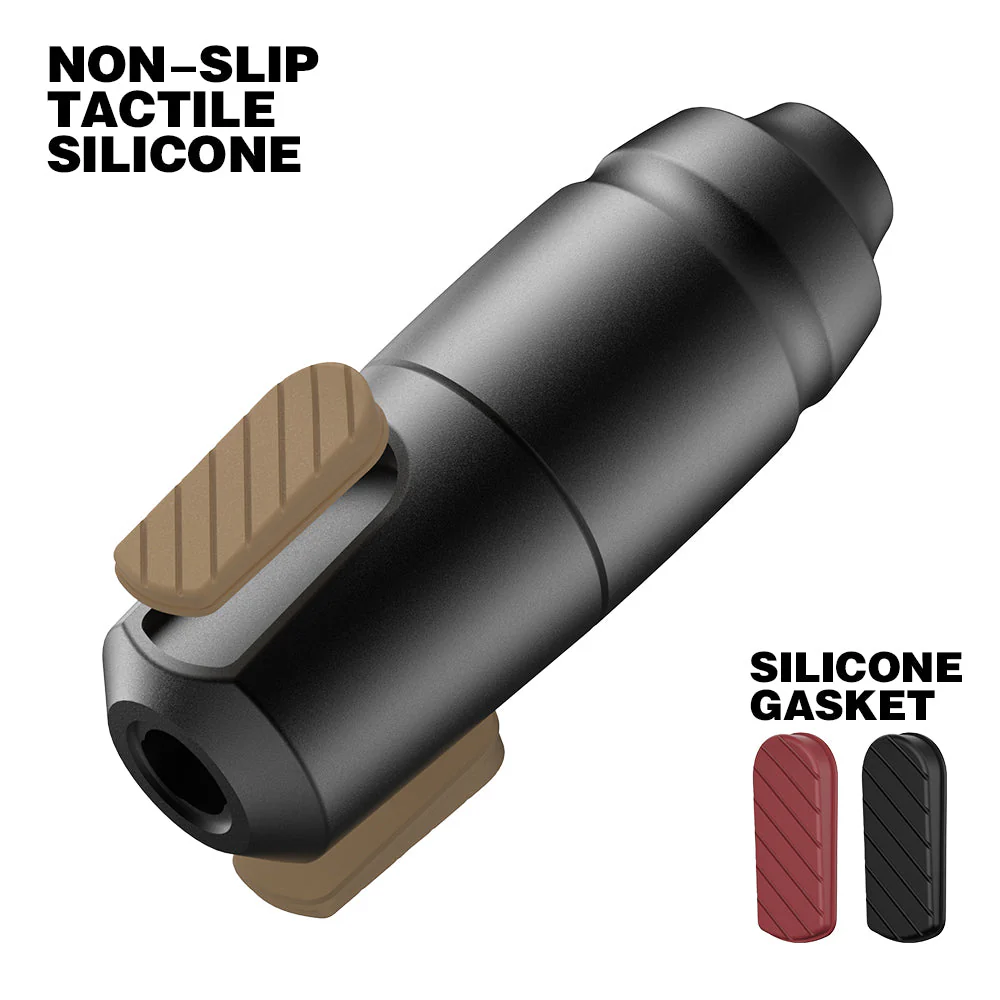

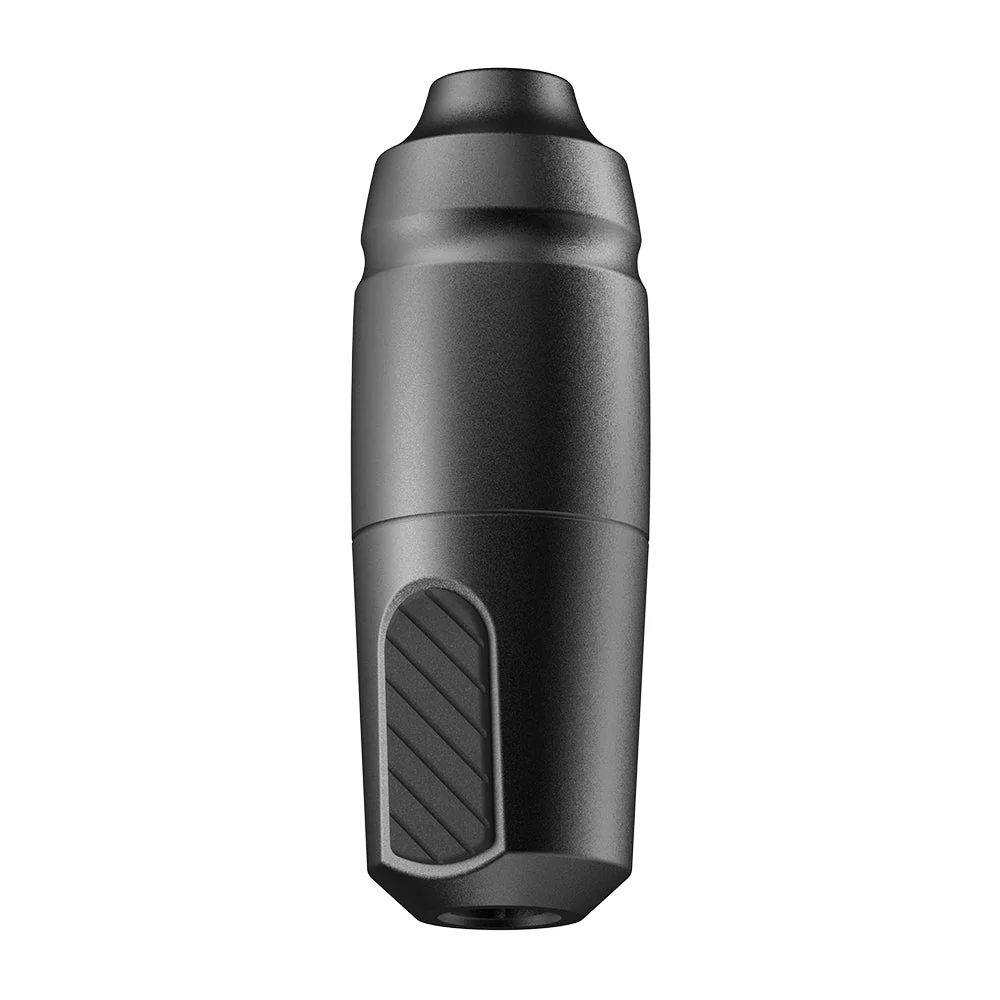

Q6 Short Tattoo Pen Ergonomic Grip
